परिचय:
फ्लेक्स पीसीबी, यह भी लचीला मुद्रित सर्किट या लचीला इलेक्ट्रॉनिक्स के रूप में जाना जाता है, डिजाइनरों और इंजीनियरों के लिए अधिक से अधिक विकल्प प्रदान करते हैं जब इलेक्ट्रॉनिक सर्किट कोडांतरण।
वे लचीला, उच्च प्रदर्शन प्लास्टिक सामग्री, आमतौर पर polyimide, जो बोर्ड मोड़ या प्रयोग के दौरान "फ्लेक्स" के लिए सक्षम बनाता से निर्माण कर रहे हैं। यह लचीलापन उन्हें आवेदनों की एक विस्तृत श्रृंखला में प्रयोग के लिए खुल जाता है।
| प्रमुखता देना: | flex board pcb,FPC,Flexible board |
||
|---|---|---|---|

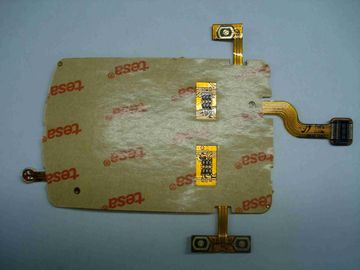

OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper VO board Conventional plates
Electrical Test 0.1-0.25mm Thickness OSP, HAL Flexible PCB Board With 0.5 - 2oz Copper
Quick Detail:
HAL/ENIG Surface finishing
Custom Layer :1 Layer ,2 Layer ,4 Layer, 6 Layer
0.1-0.25mm Thickness
FR4 Material
0.5-3oz Copper
Description:
|
Layer |
1-6 |
|
Material |
Polyimide |
|
Thickness |
0.1-0.25mm |
|
Surface finishing |
HAL/ENIG |
|
Copper |
0.5-2oz |
|
Test |
Electrical Test |
Applications:
Flexible board can be used for all kinds of electrical products, such as computer, mobile, led and so on. It’s widely used in various of industries in the world. We have been FPC and assembly business for ten years and provide different customized FPC to many countries all over the world. Welcome to contact us for further news.
Competitive Advantage:
1, Excellent quality control service
2, Competitive price
3, Quick production time
4, PCB design/production/test integrated service
Specifications:
|
Product Technical Parameter |
|||
|
Basic technology |
Parameter |
||
|
Single/Double sided |
Multilayer |
||
|
Number of Layers |
1-2 |
4~6 |
|
|
Copper Thickness |
0.25~3.0OZ |
0.5~3.0OZ |
|
|
Base Board Thickness |
0.1~0.3mm |
0.1~0.3mm |
|
|
Incombustibility |
94V-0 |
94V-0 |
|
|
Peelable resistance |
12.3N/cm |
12.3N/cm |
|
|
Twist |
≤0.5% |
≤0.5% |
|
|
Insulation resistance |
≥1011Ω |
≥1011Ω |
|
|
Test voltage |
10-300V |
10-300V |
|
|
Finished board area |
560×970mm |
560×970mm |
|
|
Min. Line Width and Spacing |
0.1/0.1mm |
0.1/0.1mm |
|
|
Copper thickness in hole |
≥25.0um |
≥25.0um |
|
|
Mini. pad diameter |
Inner layer |
|
0.05mm |
|
Out layer |
0.076mm |
0.076mm |
|
|
Mini. Hole Diameter |
0.25mm |
0.20mm |
|
|
Hole tolerance |
PTH |
±0.076mm |
±0.076mm |
|
NPTH |
±0.05mm |
±0.05mm |
|
|
Hole location tolerance |
±0.076mm |
±0.05mm |
|
|
profile tolerance |
Routing |
±0.1mm |
±0.1mm |
|
Punching |
±0.13mm |
±0.13mm |
|
|
Solder mask bridge ability |
≥0.1mm |
≥0.075mm |
|
|
Solder mask rigidity |
6H |
6H |
|
|
Solderable test |
245℃ 5 second |
245℃ 5 second |
|
|
Thermal cycling ability |
288℃ 10 second |
288℃ 10 second |
|
|
Surface Finishing |
OSP, HAL, HAL Lead-free, Immersion gold , Gold plating, Rosin, Gold finger, Immersion Tin and so on |
||
|
Qaulity standard |
IPC-A-600F IPC-ML-950 |
||
|
Sample standard |
STD-105E-Ⅱ |
||
